📐 Single Block. Complete Control.

Draft with confidence and speed by utilizing a single "smart" block designed to adapt to your project’s needs instantly.

Full 3-View Suite: This isn't just a 2D symbol. Instantly toggle between beautifully drafted Front (Elevation), Top (Plan), and Section views that match perfectly, ensuring cross-drawing consistency.

Intelligent visibility States: Our dynamic block features intuitive drop-down controls, allowing you to instantly display various configurations. Based on the visualization shown, you can easily switch between:

Doors Closed for a clean, professional elevation.

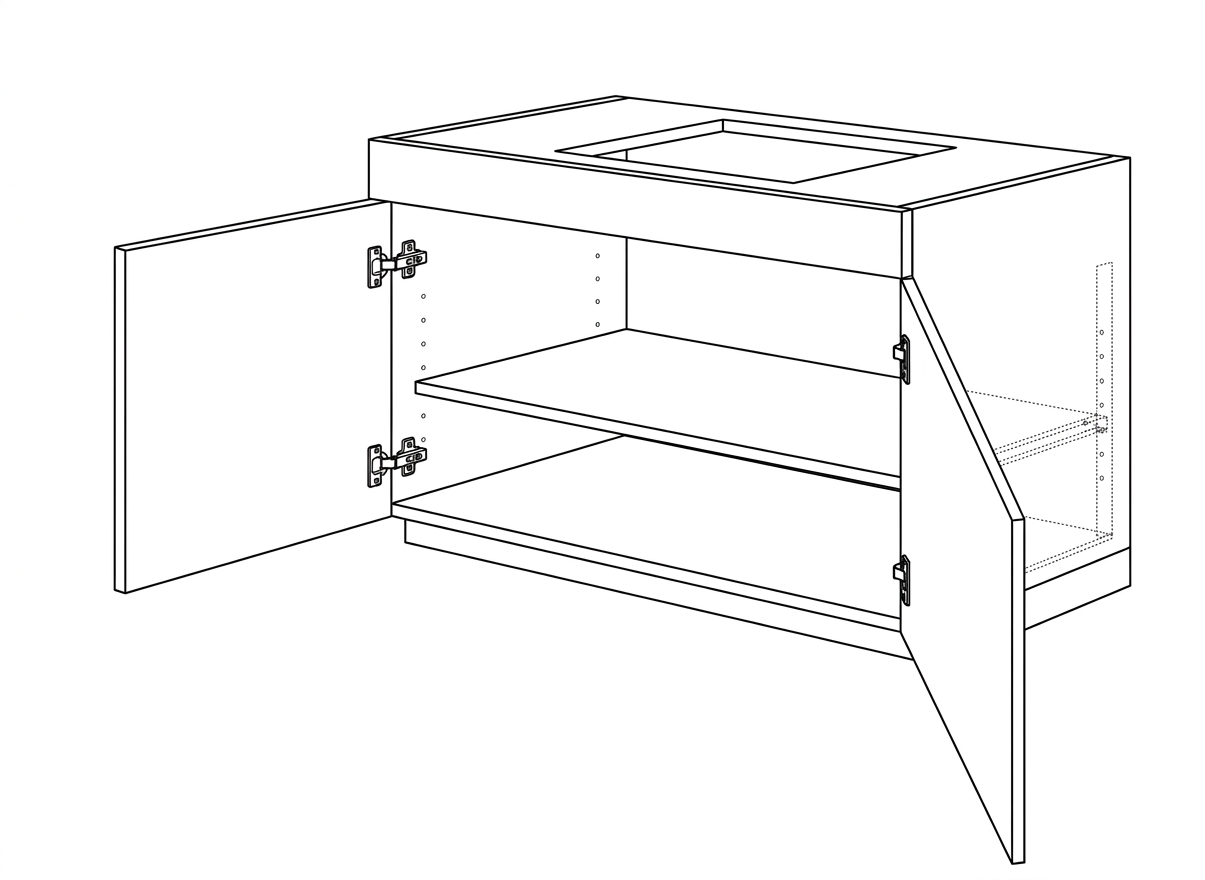

Doors Open (Left, Right, or Both) to show internal shelving, construction, and clearance.

Apron Options: Display the cabinet with or without the functional and decorative top apron frame.

Clean, AWI-Compliant Geometry: Built strictly on Layer 0 with ByBlock properties, this block integrates seamlessly into any company’s layering standard and plot styles. The underlying construction geometry reflects correct AWI material thicknesses, reveals, and plinth construction methods, so your details look professional right out of the box.
